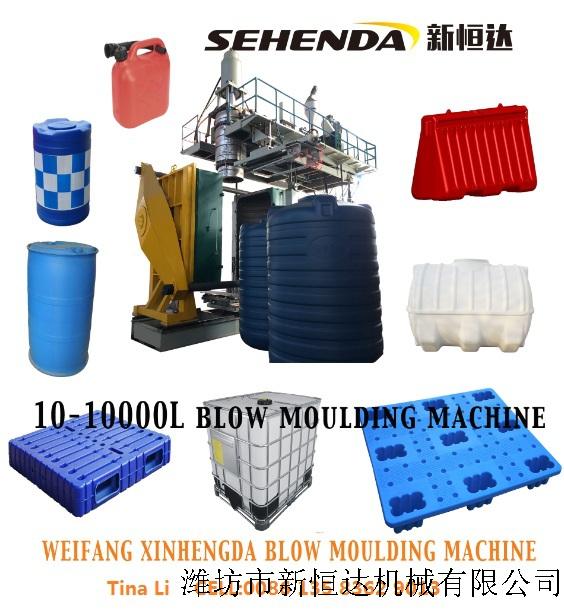

3000L 1-6 LAYERS BLOW MOLDING MACHINE
3000L 1-6 LAYERS BLOW MOLDING MACHINE
Original： ￥0.00
Detail
SKJ3000L 技術參數  Technical parameters
主要參數SpecificationsSingle layerDouble layersThree layersFour layers
最大制品容積Max container  capacity3000L3000L3000L3000L
機器重量Machine weight（TON）35455870
機器尺寸Machine size(L*W*H)12*4.8*7.212*4.8*7.212*5*7.214*8*7.5
總功率Total Power(KW)257.5404.5481.5482.5
平均能耗Average energy  consumption190260300300
擠出系統Extruder unit



主螺桿規格Screw Diameter140120/120110/110/11090/100/100/90
螺桿長徑比Screw Ratio L/D30/130/130/130/1
機筒螺桿材質Screw and barrel  materials38CrMoAlA38CrMoAlA38CrMoAlA38CrMoAlA
最大擠出量Max Output（KG/H）400500≥500≥600
驅動電機Driving motor(KW)13290/9075/75/7545/55/55/45
溫控段數Temperature Control8162124
加熱功率Heating power(KW)367284110
開合模系統Clamping Unit



結構形式StructureDouble rod Double rod Double rod Double rod
開模間距Platen opening  stroke(MM)1300-35001300-35001300-35001300-3500
模板外形尺寸Template size(MM)1900*21001900*21001900*21001900*2100
鎖模力Clamping force(KN)2800280028002800
機頭形式Die head



模頭材質Die head material38CrMoAlA38CrMoAlA38CrMoAlA38CrMoAlA
儲料缸容積Accumulator capacity（L)120120120120
口模尺寸Die core size(MM)300-720300-720300-720300-720
機頭加熱功率Heating power(KW)70100120120
模頭溫控段數Temperature Control5667
型胚厚薄調整Parison thickness  adjustMOOGMOOGMOOGMOOG
油壓系統Hydraulic system



主油泵電機功率Main oil pump motor  power45KW45KW45KW45KW
伺服油泵電機功率Servo oil pump motor  power7.5KW7.5KW7.5KW7.5KW
輔機參數Auxiliary parameters



空壓機Air compressor



產氣量Output(m3/min)5555
壓力Air pressure(Mpa)1.21.21.21.2
儲氣罐Air tank(m3)5555
