10000L BLOW MOLDING MACHINE
10000L BLOW MOLDING MACHINE
Original： ￥0.00
Detail
SKJ10000L 技術參數  Technical parameters
主要參數SpecificationsDouble layersThree layers

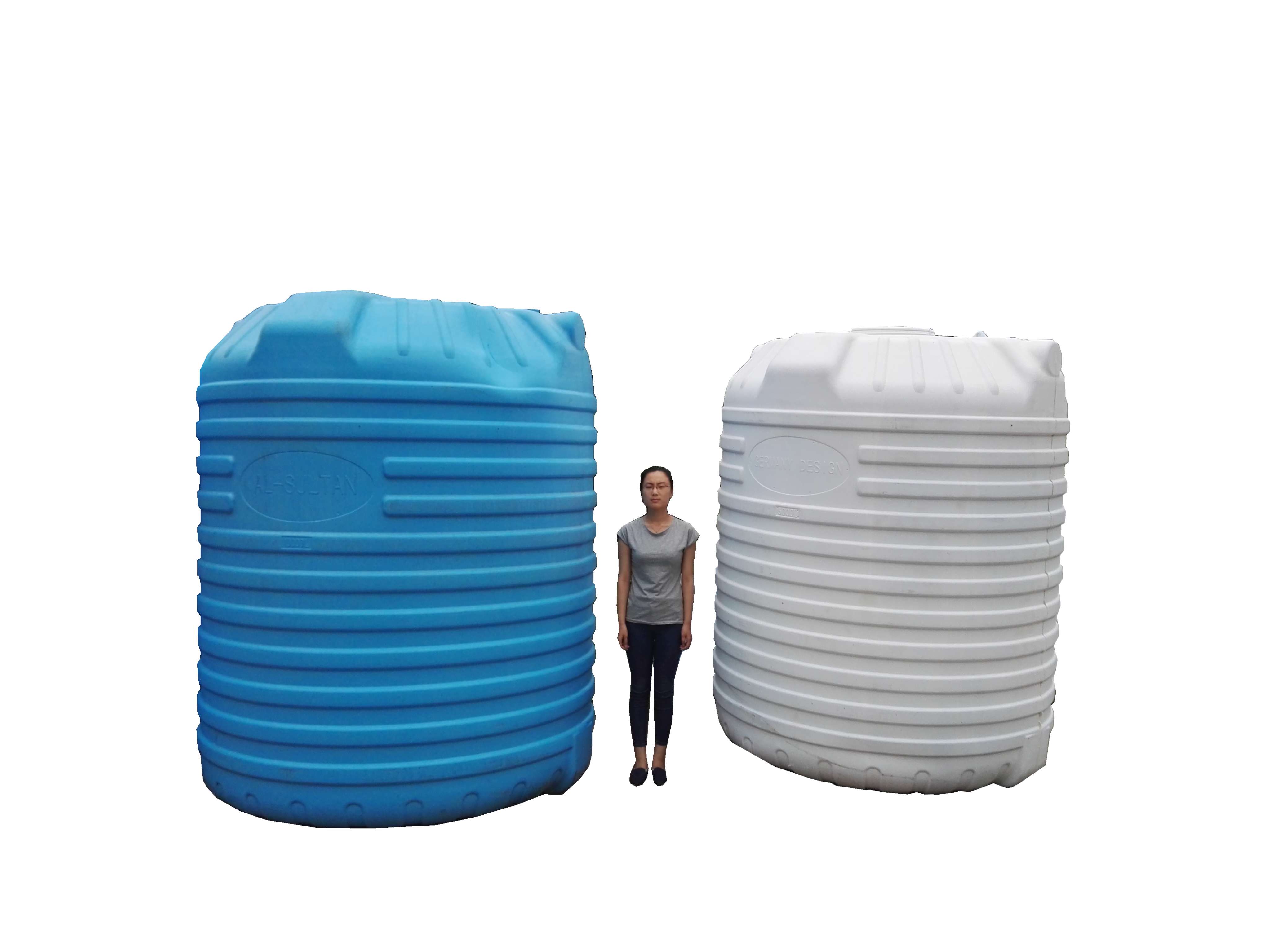

最大制品容積Max container  capacity10000L10000L
機器重量Machine weight（TON）80100
機器尺寸Machine size（L*W*h)18*14*1018*14*10
總功率Total Power(KW)618600.5
平均能耗Average energy  consumption400380
擠出系統Extruder unit

主螺桿規格Screw Diameter140/140120/130/120
螺桿長徑比Screw Ratio L/D30/130/1
機筒螺桿材質Screw and barrel  materials38CrMoAlA38CrMoAlA
最大擠出量Max Output（kg/h）＞700＞750
驅動電機Driving motor(KW)132/13290/110/90
溫控段數Temperature Control1624
加熱功率Heating power(KW)76108
開合模系統Clamping Unit

結構形式StructureDouble rodDouble rod
開模間距Platen opening  stroke(MM)1700-45001700-4500
模板外形尺寸Template size(MM)3000-40003000-4000
鎖模力Clamping force(KN)60006000
機頭形式Die head

模頭材質Die head material38CrMoAlA38CrMoAlA
儲料缸容積Accumulator capacity（L)330330
口模尺寸Die core size(MM)400-900400-900
機頭加熱功率Heating power(KW)120160
模頭溫控段數Temperature Control66
型胚厚薄調整Parison thickness  adjustMOOGMOOG
油壓系統Hydraulic system

主油泵電機功率Main oil pump motor  power75KW75KW
伺服油泵電機功率Servo oil pump motor  power7.5KW7.5KW
輔機參數Auxiliary parameters

空壓機Air compressor

產氣量Output(m3/min)1010
壓力Air pressure(Mpa)1.21.2
儲氣罐Air tank(m3)＞10＞10
