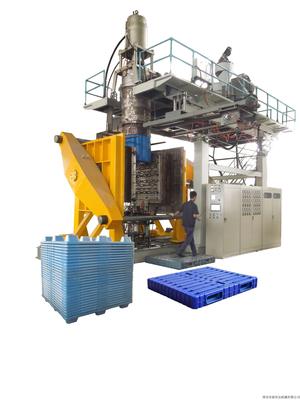

BLOW MOLDING PALLET MACHINE
BLOW MOLDING PALLET MACHINE
Original： ￥0.00
Detail
托盤設備技術參數  Technical parameters for pallet machine
主要參數SpecificationsSingle LayerDouble layersThree layers
最大制品容積Max container  capacity1416Pallet1416Pallet1416 pallet
機器重量Machine weight（TON）505880
機器尺寸Machine size(L*W*H)11*4.8*6.511*4.8*6.511*4.8*6.5
總功率Total Power（KW)304.5404.5477.5
平均能耗Average energy  consumption200240300
擠出系統Extruder unit


主螺桿規格Screw Diameter（MM）140120/120110/110/110
螺桿長徑比Screw Ratio L/D30/130/130/1
機筒螺桿材質Screw and barrel  materials38CrMoAlA38CrMoAlA38CrMoAlA
最大擠出量Max Output（KG/H）500500550
驅動電機Driving motor(KW)13290/9075/75/75
溫控段數Temperature Control81621
加熱功率Heating power(KW)407280
開合模系統Clamping Unit


結構形式StructureDouble rodDouble rod Double rod
開模間距Platen opening  stroke(MM)800*2200800*2200800*2200
模板外形尺寸Template size(MM)1800*19001800*19001800*1900
鎖模力Clamping force(KN)220022002200
機頭形式Die head


模頭材質Die head material38CrMoAlA38CrMoAlA38CrMoAlA
儲料缸容積Accumulator capacity（L)808080
口模尺寸Die core size(MM)840840840
機頭加熱功率Heating power(KW)80100120
模頭溫控段數Temperature Control566
型胚厚薄調整TMOOGMOOGMOOG
油壓系統Hydraulic system


主油泵電機功率Main oil pump motor  power454545
伺服油泵電機功率Servo oil pump motor  power7.5KW7.5KW7.5KW
輔機參數Auxiliary parameters


空壓機Air compressor


產氣量Output(m3/min)222
壓力Air pressure(Mpa)1.21.21.2
儲氣罐Air tank(m3）222
